The size of slot depends on the profile Barrisol Clim® featuring Carrier® used, it is composed of 2 elements:
- The main section
- The fixation corner bracket
The main profile can be assembled with 3 corner brackets of different fixings, generating a gap between the wall support and the stretched ceiling of 12mm, 24mm or 32mm.
Each of the corner brackets exists in the following versions:
- Perforated: allowing a passage of blowing or aspirated air
- Not perforated: sealed version does not allow air passage
The profile size to be used (12, 24 or 32mm) as well as the positioning of the perforated and non-perforated versions is given by the Barrisol Clim® feasibility study.
In non-perforated version the corner brackets have the same dimensions but not the air perforation.

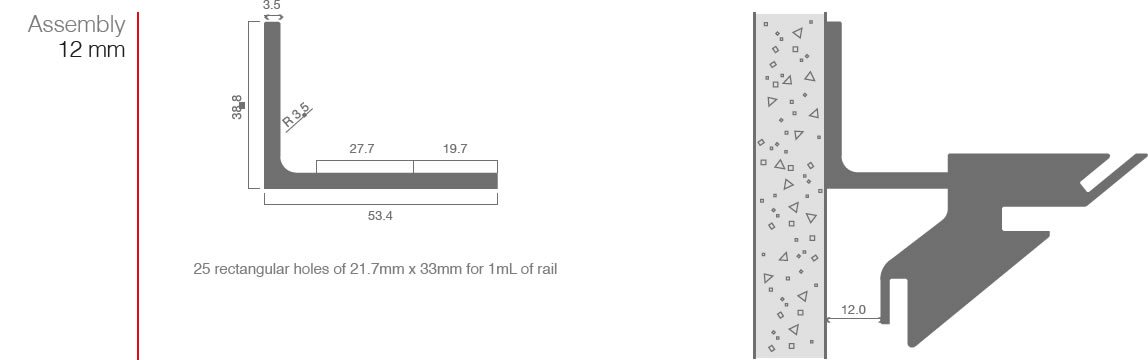

Corner bracket 12 mm

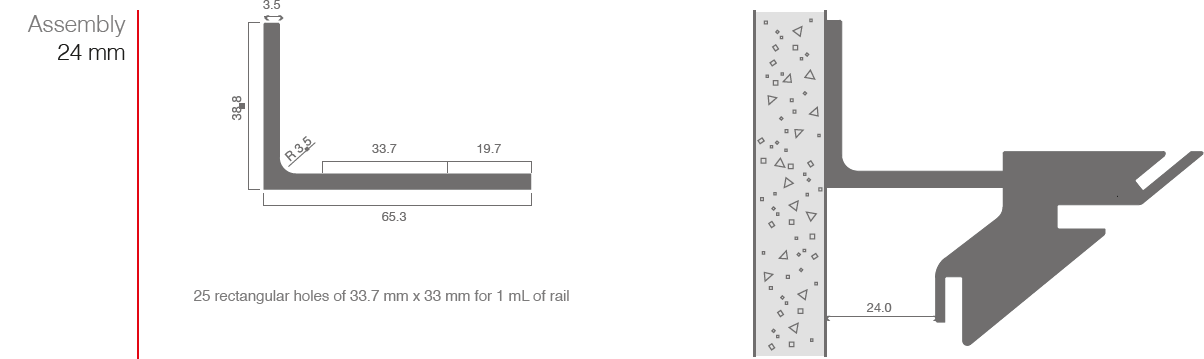

Corner bracket 24 mm

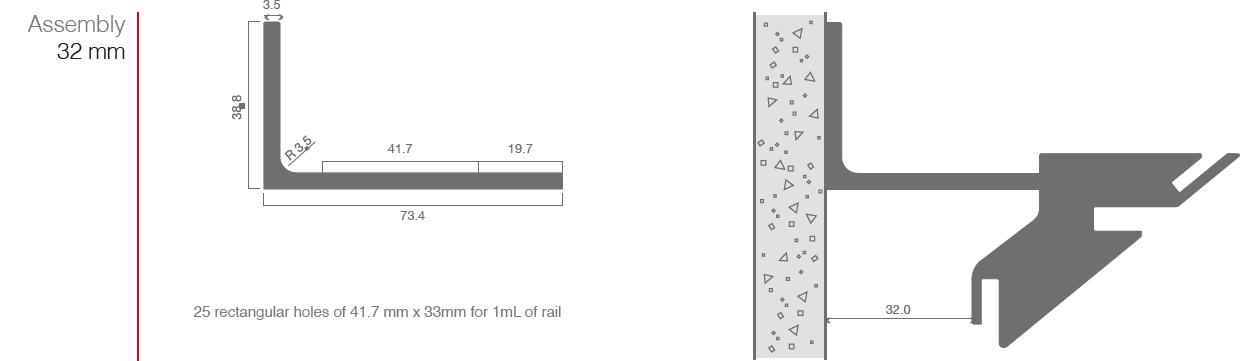

Corner bracket 32 mm
